Control Panel Labels for OEMs and System Integrators

Send an Excel or CSV list with the approved legend text, quantity, colors and physical specifications for each plate. Add the operator manufacturer and part number, plus the component drawing when the plate needs a cutout or locking feature. Keep panel and operator references in separate grouping fields. The schedule guide explains the file structure. Identify the BOM revision and unresolved entries before release, and request a proof where needed. Importing a list does not verify its text or component assignments.

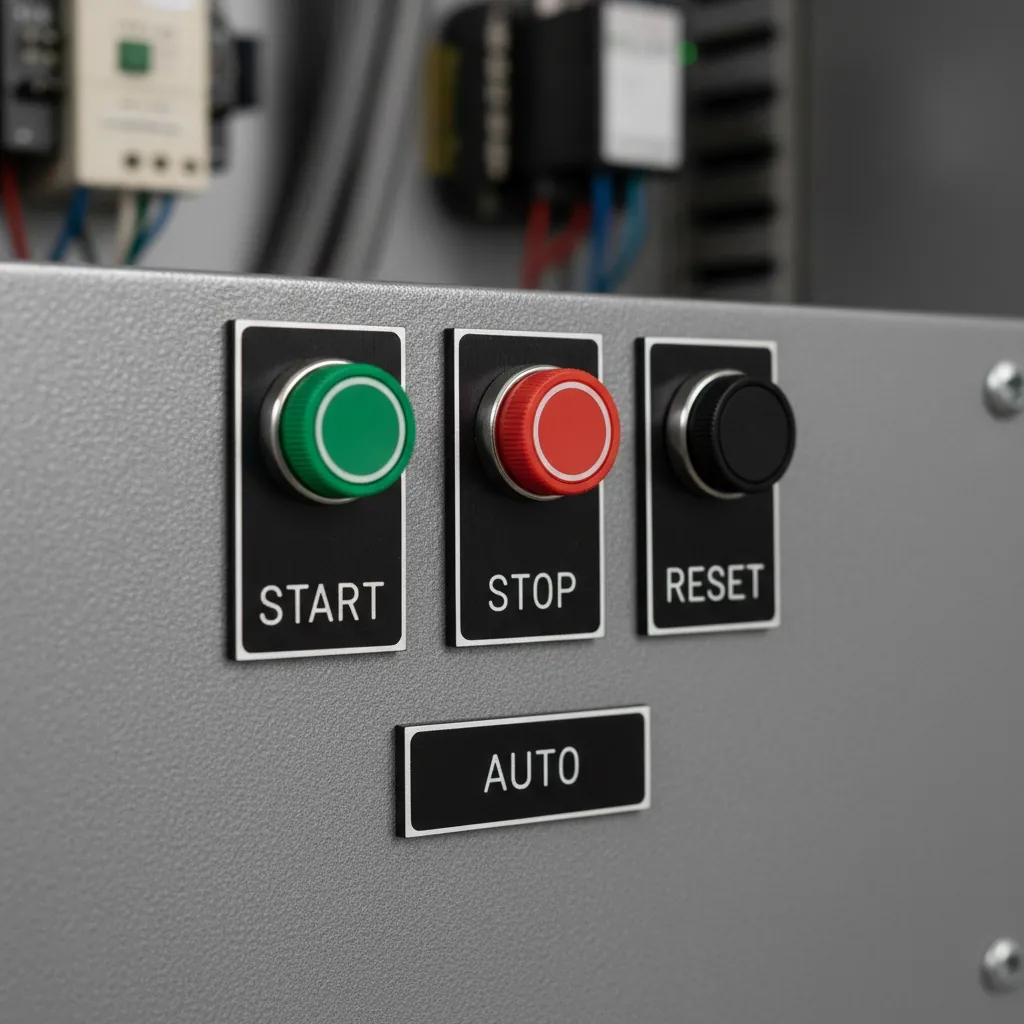

Provide the operator manufacturer, exact catalog number and current component drawing. Include the required opening, anti-rotation features, outside plate dimensions, thickness and available panel clearance. The legend-plate guide explains why a nominal 22 mm or 30 mm size does not define every fit detail. Send the approved function text and layout with those measurements for review. An operator family name or photograph alone is not enough to confirm the plate geometry for every model.

Send a dimensioned PDF and the available DXF or DWG file, with units, revision, finished dimensions, thickness, mounting holes and component cutouts. Show the front face and separate engraved text or graphics from the cut lines. The panel and overlay guide lists these drawing requirements. Include component part numbers and the required tolerances for review. A photograph can explain the layout, but missing dimensions or openings should be resolved before the part is approved for production.

Put the required dimensions and tolerances on the controlling drawing and identify the components that must fit. Include hole positions, anti-rotation details, clearances, material thickness and the drawing units. The overlay specification guide explains the mechanical information to supply. Ask the team to confirm feasibility and any inspection or sample requirements with the quote. Do not assume a nominal operator size establishes every opening or clearance, and resolve unspecified fit requirements before approving the layout.

State the number of assemblies and the total finished quantity for each label design. Separate identical repeats from plates carrying unique panel, machine or operator IDs. Keep a grouping field for the assembly or panel set so the requested packing order is clear. The ordering guide explains grouping and file preparation. Include the controlling BOM and drawing revisions, then confirm the complete quantities, material, layout, packaging and delivery phases with the quote. Discuss future repeat orders using the approved records for that build.

Send the changed text or drawing with its revision and reference the previous order. Identify the affected operator or panel rows, the required quantities and any change to dimensions, material, cutouts or mounting. The schedule preparation guide explains how to keep the approved source clear. Ask which earlier details can be reused and confirm the revised layout, quote and timing. An old production file should not be treated as approval for new functions, device locations or hardware.

Provide the colors and wording approved by the responsible panel designer for the actual control and governing project requirements. Identify the background and engraved-text colors separately, along with the operator reference and any required symbols. The legend-plate ordering guidance explains this handoff. Have the proposed stock, layout and visibility reviewed before release. A catalog color combination does not establish that an emergency-stop or safety-control assembly meets its applicable requirements, and the engraving shop should not infer a control function from its location.

Send the approved wire or terminal list with the exact identifiers, quantity, finished dimensions and attachment requirements. For a terminal-label carrier, provide its manufacturer, part number and dimensional information for review. For a hanging or tie-mounted tag, specify the hole pattern and intended attachment. The mounting guide explains these physical details. Separate engraved rigid identification from any sleeve, wrap or other marking requirements in the project package, and confirm the proposed format before assuming it fits existing carrier hardware.

Provide the complete released list, component drawings, material requirements and the date the plates must be received. Quantity, stock, custom cutouts, artwork and proof approval can affect the production plan. The ordering guide explains the information to submit. Call to discuss rush availability for the actual package and confirm both production and carrier transit before relying on the panel ship date. For several builds, identify phase quantities and receiving locations so the requested arrangement can be reviewed.

CPL engraves in-house in Kennesaw, Georgia and ships nationwide. The operation is part of Mike’s Trophies & Awards, established in 1987. Send the approved BOM, legends and dimensioned panel drawings for a project-specific review. The equipment nameplate page describes the shop and supplied-data identification work. Confirm the proposed stock, mechanical details, proof and required receiving date with the team. For a repeat build or replacement, reference the earlier order and identify any revised text, hardware or drawing information.
