Valve Tags and Equipment Labels for Mechanical Contractors

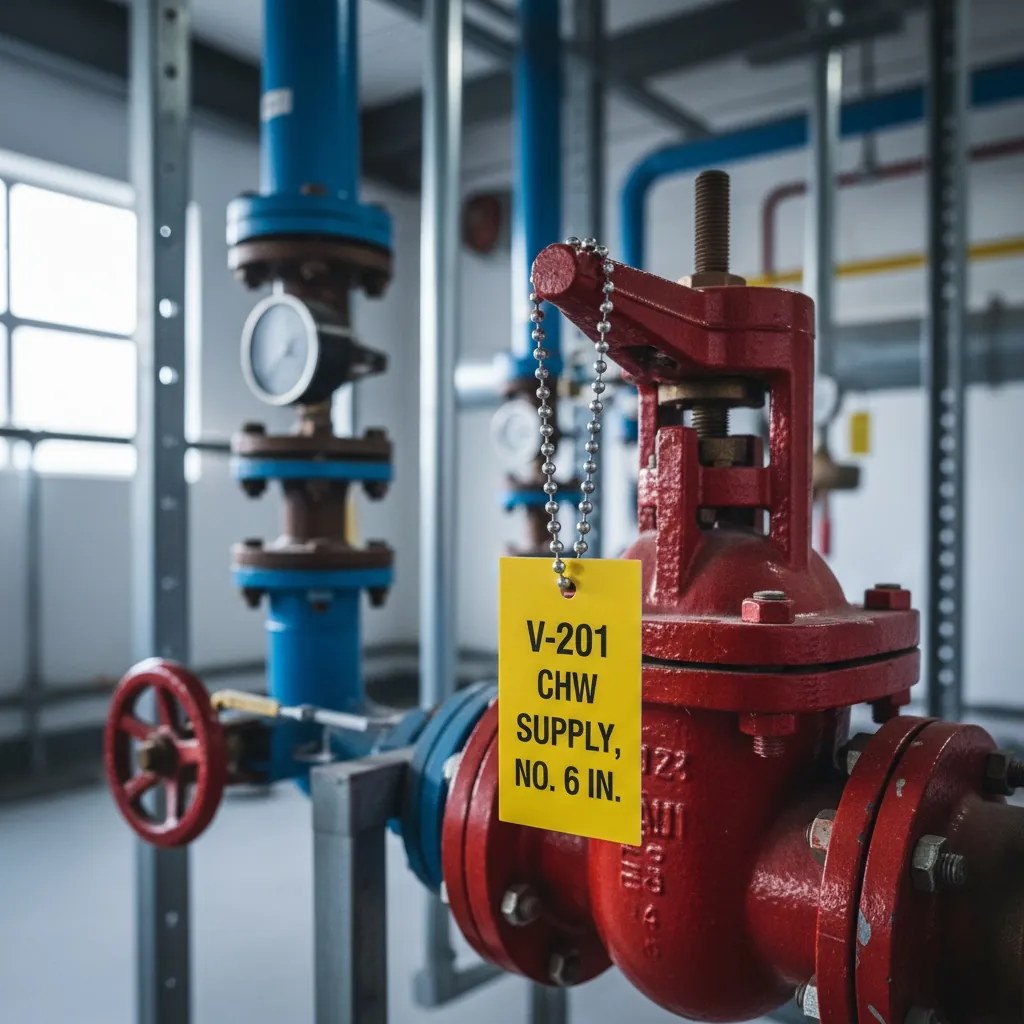

Use the fields required by the approved valve schedule. These commonly include the valve ID, system or service and location; add normal position or other information only when the facility’s requirements call for it. Do not infer a valve’s operating position from a photograph or a similar installation. The valve-tag service guide explains schedule preparation. Separate the engraved wording from grouping references, check abbreviations and identifiers against the current records, and include the tag dimensions, material and attachment requirements with the order.

Send the complete approved schedule with one row per distinct tag design and a quantity for repeats. Include valve IDs, exact text, dimensions, colors, material and attachment details. Add system, floor, room or installation-sequence fields when tags need grouping. The ordering guide explains this file handoff. Flag unresolved records and identify the current revision before approval. A structured spreadsheet reduces manual retyping, but the contractor should still check the source list and requested proof against the project records.

Yes. Send an approved equipment list or Excel or CSV asset export with the fields that belong on the plates. For pumps, chillers, air handlers or other mechanical equipment, distinguish the asset ID and equipment description from reference-only location data. The nameplate guide covers authoritative equipment data and physical specifications. Provide dimensions, colors, material and mounting for each group. An export is a source-file handoff; it does not imply a native connection to the CMMS or verification of missing equipment ratings.

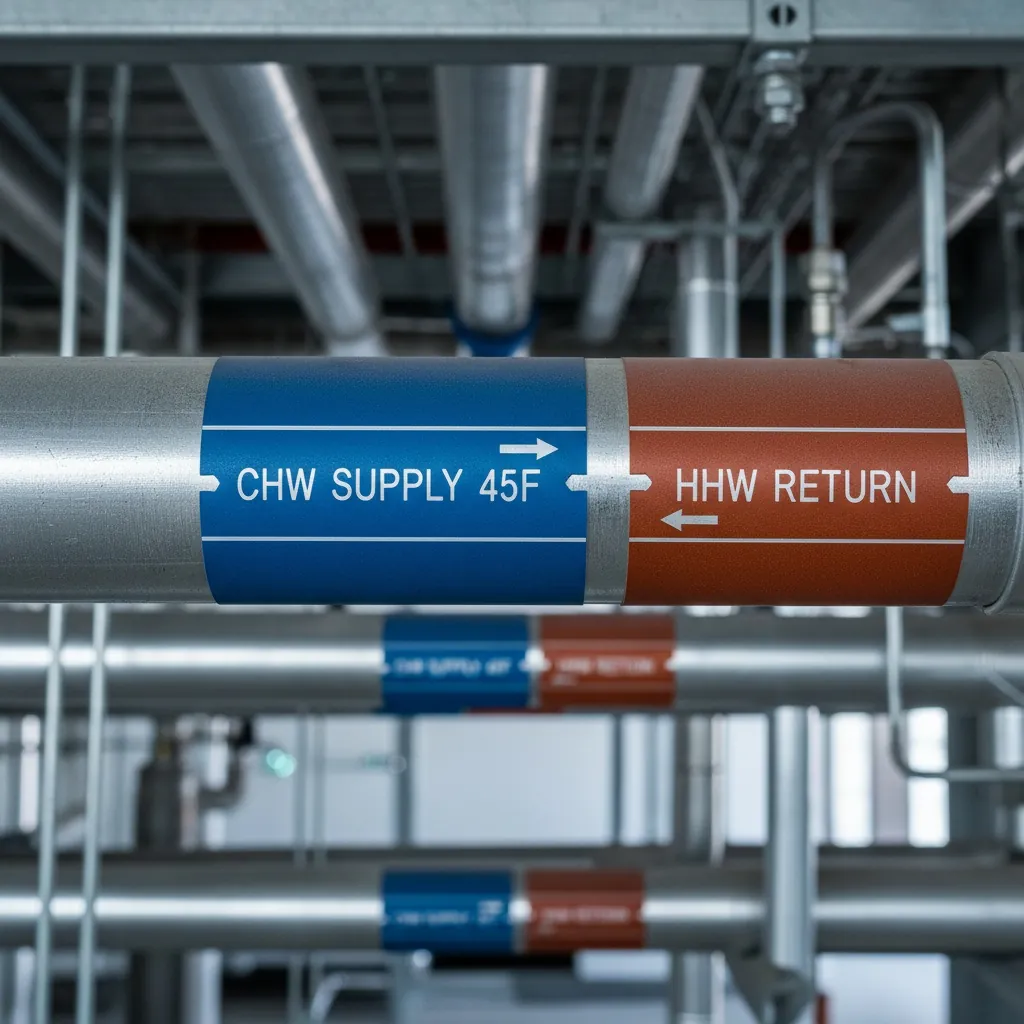

Provide the piping-identification requirements approved for your project, including the governing standard and edition, required wording, colors, dimensions and placement. ASME describes A13.1 as a piping identification standard; it does not supply every facility’s valve numbering scheme. Use the official ASME scope for context and have the responsible designer confirm the actual requirements. Keep pipe-marker requirements separate from the valve schedule so the quote identifies each product clearly. Engraving to supplied wording does not by itself establish compliance for the installation.

Lamacoid and phenolic are common trade terms in engraved identification; confirm the actual substrate instead of treating either name as a performance specification. CPL uses modern multi-layer engraving laminate for many orders. True resin-based phenolic is a different material family and requires sourcing and suitability confirmation when specified. The material guide explains this distinction. For mechanical rooms, give the normal and peak temperatures, moisture, cleaners and attachment conditions so the proposed stock can be reviewed against the actual requirements.

Specify the attachment shown in the project or equipment requirements, together with the actual mounting location and exposure. Provide the tag shape and size, hole diameter, hole position and any chain, wire or tie requirements for review. The mounting guide explains drilled and hanging configurations. Attachment hardware should be confirmed with the quote rather than inferred from valve size alone. Identify existing hardware that must be reused and have the responsible installer confirm that the proposed arrangement suits the equipment.

Send a clear photograph or sample with measured dimensions, hole details, colors and the approved text. Include the current valve schedule or drawing reference so a replacement does not reproduce an obsolete identifier or position. The mounting guide explains the measurements needed when matching existing attachment points. Identify whether the request is an unchanged replacement or part of a revised system, and confirm the proposed material and layout with the quote. A photograph alone does not establish the original stock, rating or exact color match.

Pricing depends on the actual tag schedule. Include sizes, shapes, material, colors, quantities, engraving detail, hole or chain configuration and the requested sorting. Distinguish identical repeats from individually numbered tags, and identify any replacement or custom artwork work. The valve-tag ordering page describes these quote factors. Add the receiving location and required date so preparation, packing and delivery requirements can be discussed together. Confirm the scope and included charges before approval rather than estimating the package from another project’s tag count.

Confirm production and shipping dates for the complete order. Quantity, material availability, custom layouts, attachment requirements, proof approval and the shop schedule can affect timing. Send the released valve or equipment schedule with the receiving address and the date the tags must arrive. The ordering guidance explains the details to provide. Discuss rush availability before relying on a commissioning or inspection deadline, and confirm the arrangements for each phase. A production date and a carrier delivery date are separate parts of the schedule.

CPL engraves in-house in Kennesaw, Georgia and ships nationwide. The operation is part of Mike’s Trophies & Awards, established in 1987. Bring the current valve schedule or mechanical equipment list, physical specifications and receiving requirements for review. The nameplate service page describes the shop and equipment-identification work. Ask the team to confirm material, layout, grouping and timing for the actual package.
