Panel Schedule Labeling: What NEC 408.4 Requires

Labeling deficiencies are one of the most common reasons a panel gets flagged during electrical inspection, and the requirements have tightened with each recent code cycle. If your circuit directories still say "plugs" and "lights," they almost certainly don't meet the current National Electrical Code. Here's what the code actually requires, what a compliant panel schedule looks like, and where crews most often fall short.

The core rule: every circuit, specifically identified

NEC 408.4(A) governs circuit directories in panelboards, switchboards, and switchgear. Every circuit, and every circuit modification, must be legibly marked with a clear, specific description of what it serves, in enough detail to distinguish it from every other circuit. The operative word is specific. "Receptacles" fails; "Office 315 receptacles" passes. "Lighting" fails; "Second-floor east corridor lighting" passes. Descriptions can't depend on who occupies a space today, either, because occupancy is a transient condition.

Spare positions count

Breakers installed but not connected must be identified as spare. A blank line isn't acceptable; unused positions are described accordingly.

Where the directory lives

For a panelboard, the directory goes on the face or inside of the panel door, or an approved adjacent spot. For switchboards and switchgear, identification appears at each switch or circuit breaker, so whoever opens the equipment sees it right at the device.

The source-of-supply rule and the 2020/2023 tightening

Separately, disconnecting means and equipment fed from elsewhere must identify where their power comes from (this excludes one- and two-family dwellings). The 2020 code began requiring the marking to identify the circuit source; the 2023 code added that it must also state the source's location. Knowing a disconnect is fed from "Panel H-1" is no longer enough if a worker can't find Panel H-1 in the building.

Permanence matters as much as content

NEC 110.21(B) requires field-applied hazard markings to be durable for their environment and does not allow handwriting for hazard markings. Typed, printed, or engraved identification is the accepted best practice for commercial work and anything meant to stay legible for the equipment's 20-to-30-year life.

Know which edition applies

The NEC runs on a three-year cycle and the 2026 edition became available in September 2025, but the edition that governs your project is whichever your state or local jurisdiction has adopted, and that varies widely. An installation is judged against the edition in force when its permit was issued; new work must meet the currently adopted edition. Confirm with your local building department or AHJ before finalizing a labeling standard.

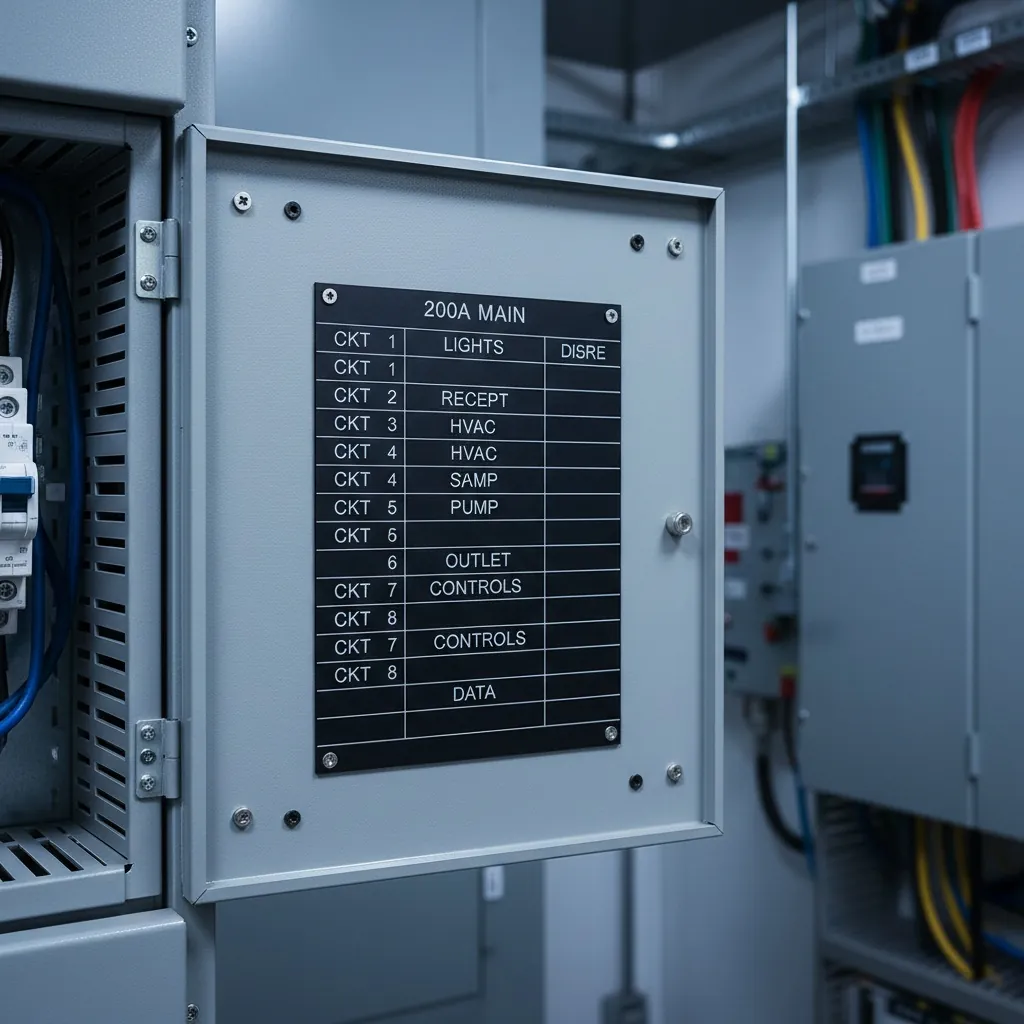

Because permanent directory identification must stay legible for decades, engraved multi-layer laminate is a common choice — the text is cut into the material rather than printed on top, so it can't smudge, peel, or fade.

Custom Phenolic Labels engraves panel directories, disconnect labels, and equipment ID directly from the panel schedules and one-lines contractors already work from — formatted to the specificity the current code expects.

Frequently asked questions

What does NEC 408.4 require?

Circuit directories must identify every circuit specifically enough to distinguish it from every other circuit.

Can a panel directory say lights or receptacles?

Generic descriptions usually lack the specificity expected by current code. Identify the location or load served.
